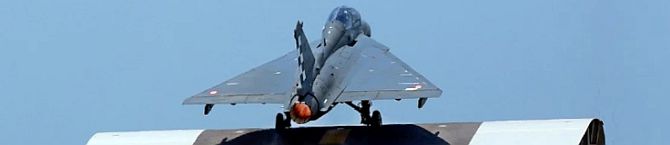

A TEJAS Naval  jet takes off from the ski-jump at the shore based test facility INS Hansa, Goa

A seminal achievement was accomplished in the quest for technologies related to operation of indigenous fighter aircraft from aircraft carriers. On 29 September, 2019, TEJAS Naval Prototype-2 launched off the ski jump at 1621 hours and then subsequently “trapped” at 1631 hrs on the arresting gear site (both locations situated at Shore Based Test Facility INS Hansa, Goa). While both these activities had been achieved individually earlier, this was the first occasion when the complete cycle of launch and recovery necessary for aircraft carrier operations was accomplished in a single sortie.

Though these tests have been carried out successfully individually earlier, this achievement is another feather in the cap of all the agencies involved in this including DRDO, ADA, HAL, and Indian Navy.

The TEJAS (Navy) team has had to not only conceptualise but has also experimented with the complex software modes which are involved in this. This is critical for the unique Short Take-Off but Arrested Recovery (STOBAR) concept of aircraft operations.

For achieving these successes the team has had to work on exploring and expanding the structural capabilities of the aircraft. The team has been carrying out various experiments with multiple software options and hardware configurations. This has been done to ensure that it is able to withstand the requirements of the aircraft carrier.

Several issues have to be taken into consideration while carrying out experiments with the complex software which includes multiple configurations, aerodynamic surfaces, different flight control strategies, avionics tools and display symbols to ease the piloting task.

How Arrested Recovery Work

General Operations: Landing on a flight deck is one of the most difficult things a navy pilot will ever do. In about two seconds, the Tejas-N decelerates from 244 kilometres per hour (132 knots) to standstill by snagging the wire on the test runway with the hook attached to the jet's fuselage. It took just 300 feet for the jet to come to full halt during today's test at the Goa's Shore-Based Test Facility.

To land on the flight deck, each plane needs a tailhook, which is exactly what it sounds like -- an extended hook attached to the plane's tail. The pilot's goal is to snag the tailhook on one of four arresting wires, sturdy cables woven from high-tensile steel wire.

The arresting wires are stretched across the deck and are attached on both ends to hydraulic cylinders below deck. If the tailhook snags an arresting wire, it pulls the wire out, and the hydraulic cylinder system absorbs the energy to bring the plane to a stop. The arresting wire system can stop a 54,000-pound aircraft travelling 150 miles per hour in only two seconds, in a 315-foot landing area (a 24,500-kg aircraft travelling at 241 kph in a 96-meter landing area).

There are four parallel arresting wires, spaced about 50 feet (15 meters) apart, to expand the target area for the pilot. Pilots are aiming for the third wire, as it's the safest and most effective target. They never shoot for the first wire because it's dangerously close to the edge of deck. If they come in too low on the first wire, they could easily crash into the stern of the ship. It's acceptable to snag the second or fourth wire, but for a pilot to move up through the ranks, he or she has to be able to catch the third wire consistently.

To pull off this incredible trick, the pilot needs to approach the deck at exactly the right angle. The landing procedure starts when the various returning planes "stack up" in a huge oval flying pattern near the carrier. The Carrier Air Traffic Control Centre below deck decides the landing order of the waiting planes based on their various fuel levels (a plane that's about to run out of fuel comes down before one that can keep flying for a while). When it's time for a plane to land, the pilot breaks free of this landing pattern and heads toward the stern of the ship.

Landing Signals Officers (LSOs) help guide the plane in, through radio communication as well as a collection of lights on the deck. If the plane is off course, the LSOs can use radio commands or illuminate other lights to correct him or her or "wave him off" (send him around for another attempt).

In addition to the LSOs, pilots look to the Fresnel Lens Optical Landing System, commonly referred to as the lens, for landing guidance. The lens consists of a series of lights and Fresnel lenses mounted to a gyroscopically stabilised platform. The lenses focus the light into narrow beams that are directed into the sky at various angles.

The pilot will see different lights depending on the plane's angle of approach. If the plane is right on target, the pilot will see an amber light, dubbed the "meatball," in line with a row of green lights. If the amber light appears above the green lights, the plane is coming in too high; if the amber light appears below the green lights, the plane is coming in too low. If the plane is coming in way too low, the pilot will see red lights.

As soon as the plane hits the deck, the pilot will push the engines to full power, instead of slowing down, to bring the plane to a stop. This may seem counter-intuitive, but if the tailhook doesn't catch any of the arresting wires, the plane needs to be moving fast enough to take off again and come around for another pass. The landing runway is tilted at a 14-degree angle to the rest of the ship, so bolters like this can take off from the side of the ship instead of ploughing into the planes on the other end of the deck.

As soon as an aircraft lands, it's pulled out of the landing strip and chained down on the side of the flight deck. Inactive aircraft are always tightly secured to keep them from sliding around as the deck rocks back and forth.

The flight-deck crew has to be prepared for a wide range of unexpected events, including raging aircraft fires. During takeoff or recovery operations, they have plenty of safety equipment at the ready. Among other things, the flight deck has fire equipment, and nozzles leading to water tanks and aqueous film-forming foam, an advanced fire-extinguishing material (there are also nozzles for jet fuel and a number of other useful liquids).

Flight-deck personnel also face the risk of a jet engine blowing them overboard. Safety nets around the side of the flight deck offer some protection, but for extra safety, personnel are also equipped with float coats, self-inflating jackets with flashing distress lights, activated by contact with water. Flight-deck personnel also wear heavy-duty helmets, called cranials, which protect their head and their hearing. (Text Courtesy: IDN wishes to thank Tom Harris of HSW)
