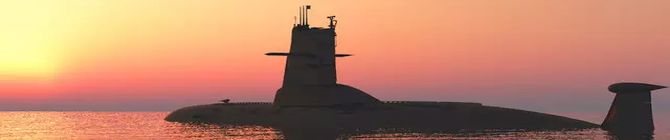

Few submarines are less photographed than India’s two Arihant Class ballistic missile submarines (SSBNs). The lead boat, INS Arihant (S2), was commissioned in 2016 and a second boat, INS Arighat (S3) is expected to join her in service this year. The Arihant is a unique design which can be characterized as a ‘pocket boomer’. It is much smaller than other ballistic missile submarines (North Koreas’ conventionally powered boats excepted). Its hull is shorter and thinner than its contemporaries and it only carries four missile silos.

But this does not take away from the industrial achievement of an indigenous nuclear-powered submarine. And in many respects its modest size seems pragmatic. Other countries now taking the nuclear submarine path, such as Brazil, are also going for smaller types.

The Kilo Connection

Although photographs of the Arihant Class are very rare, analysis of satellite imagery and the few photos that are available give some indications of the internal arrangement

Analysis of the few photograph available confirm that some aspects of Arihant bear a strong resemblance to the Kilo Class. The upper sonar dome on top of the bow and many aspects of the sail are visually identical. And the hull diameter appears to match. In essence, the forward hull and sail are essentially similar to the Kilo Class. This makes some sense as India purchased 10 Kilos which are known as the Sindhughosh Class in service.

Several of India’s Kilos have been refitted with DRDO developed ‘USHUS’ sonar suites. It seems probable that the Arihant’s forward hull is so similar in order to leverage the USHUS sonar. This system, now improved to USHUS-2. was under development at the right time to be fitted to her.

USHS includes a cylindrical passive sonar in the chin, several intercept sonars, an obstacle avoidance sonar and an active sonar.

Overall the arrangement of the system is the same as the Russian systems originally fitted to the Kilo. However the intercept sonars in the trailing edge of the sail are arranged one above the other. This may explain the different shape of the sonar window seen there on the Arihant.

One visible difference between the bow on Arihant and the Kilo Class is the torpedo tube arrangement. Arihant’s are set lower. This indicates some internal differences and confirms that it is not literally a Kilo hull.

The design also has the forward hydroplanes moved to the sail, a position known as fairwater planes. The upper part of the casing has been raised to fair over the missile silos which are in the usual place behind the sail.

Indigenous Missiles

Behind the sail the missile compartment initiates the part of the submarine which is unlike anything on a Kilo. Four large-diameter missile silos are arranged in a single line. Initially these are fitted with triple tubes for the K-15 ‘Sagarika’ missile. This weapon is about 10 It can deliver a 1,000 kg warhead about 400 nautical miles.

K-15 is seen as an interim solution however. Each missile tube should be able to fit a single K-4 missile. The newer K-4 is a full-size SLBM (Submarine Launched Ballistic Missile). This is expected to have a range of around 1,900 nautical miles, almost 4 times that of the K-15. While shorter ranged than the SLBMs in service with more mature nuclear navies, it will move India’s at-sea deterrent up a notch.

It seems unlikely that a second Arihant class boat will change the Indian Navy’s attitude to submarine secrecy. But its commissioning may provide new clues to the classes’ capabilities. And any differences between the two boats. Also, the third of the class my emerge from its construction hall soon. The defence world is patiently waiting.
